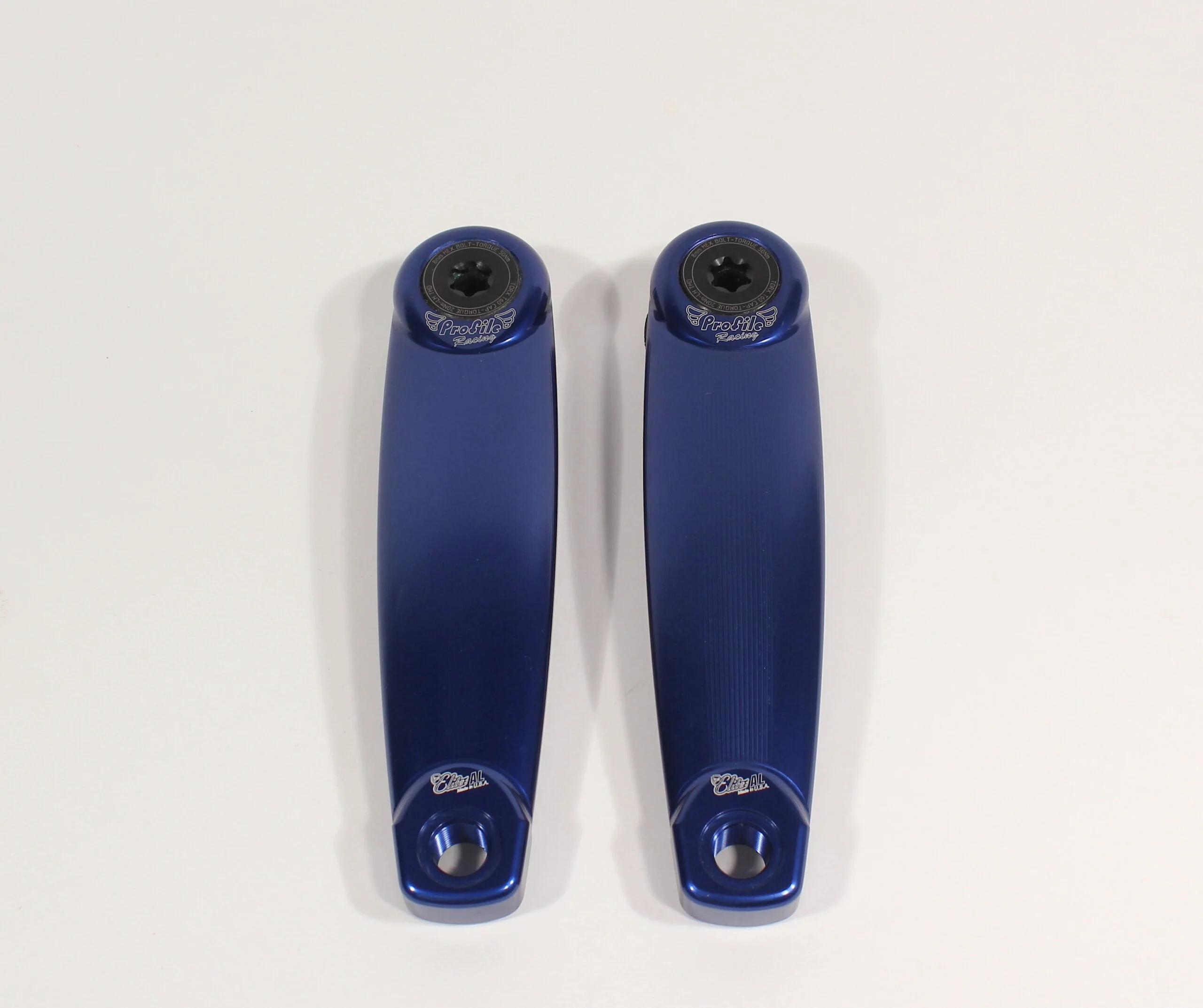

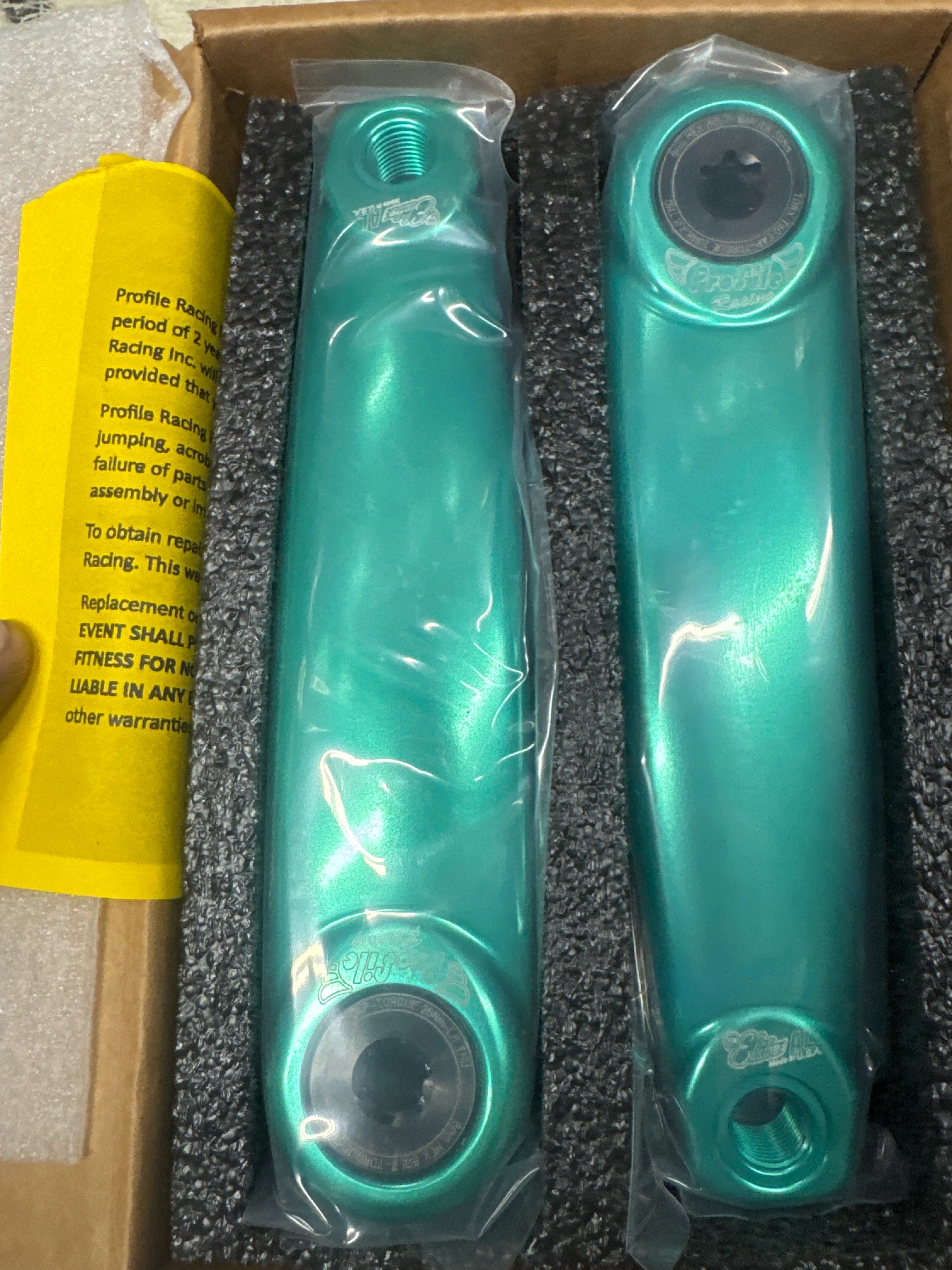

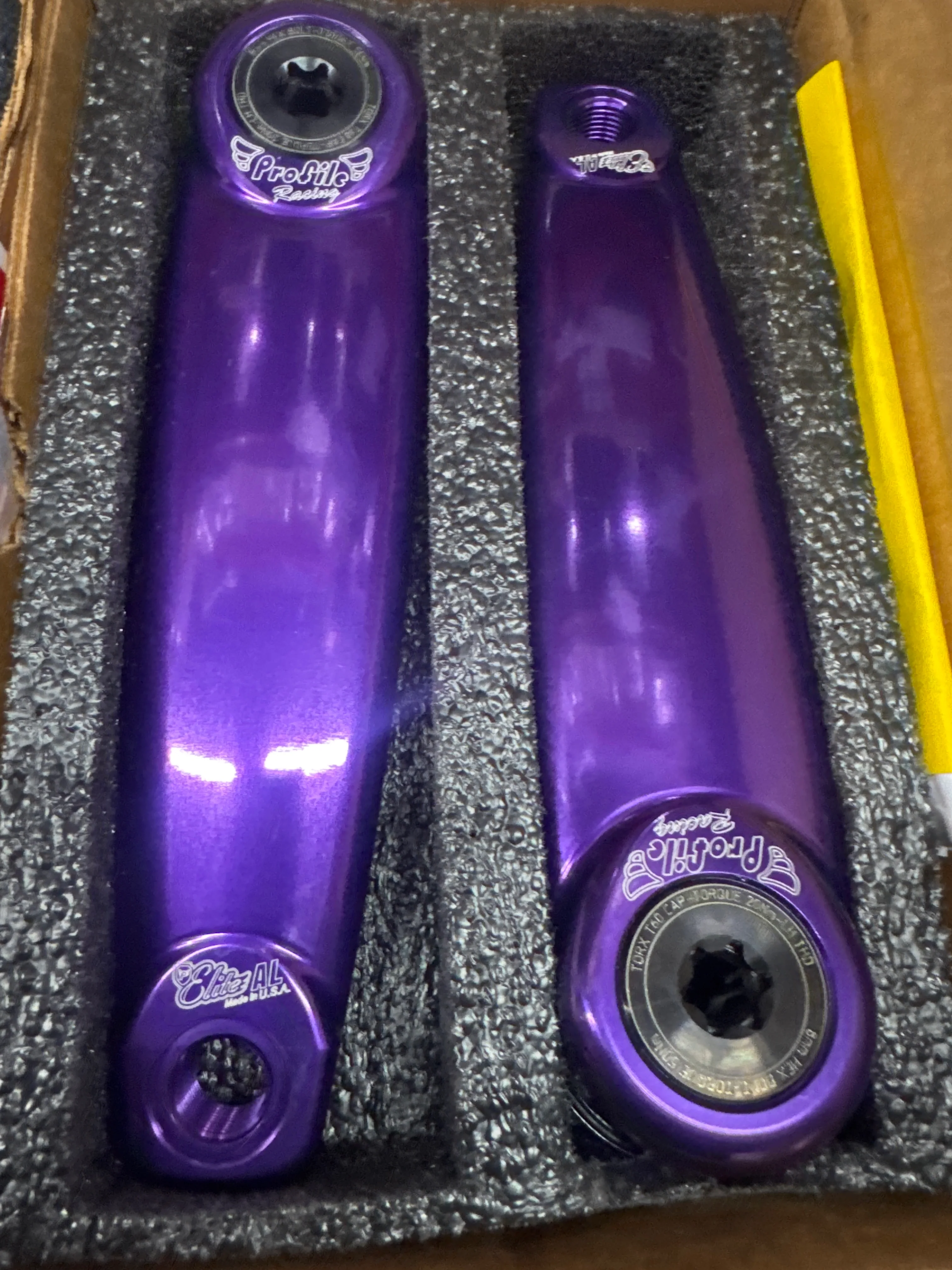

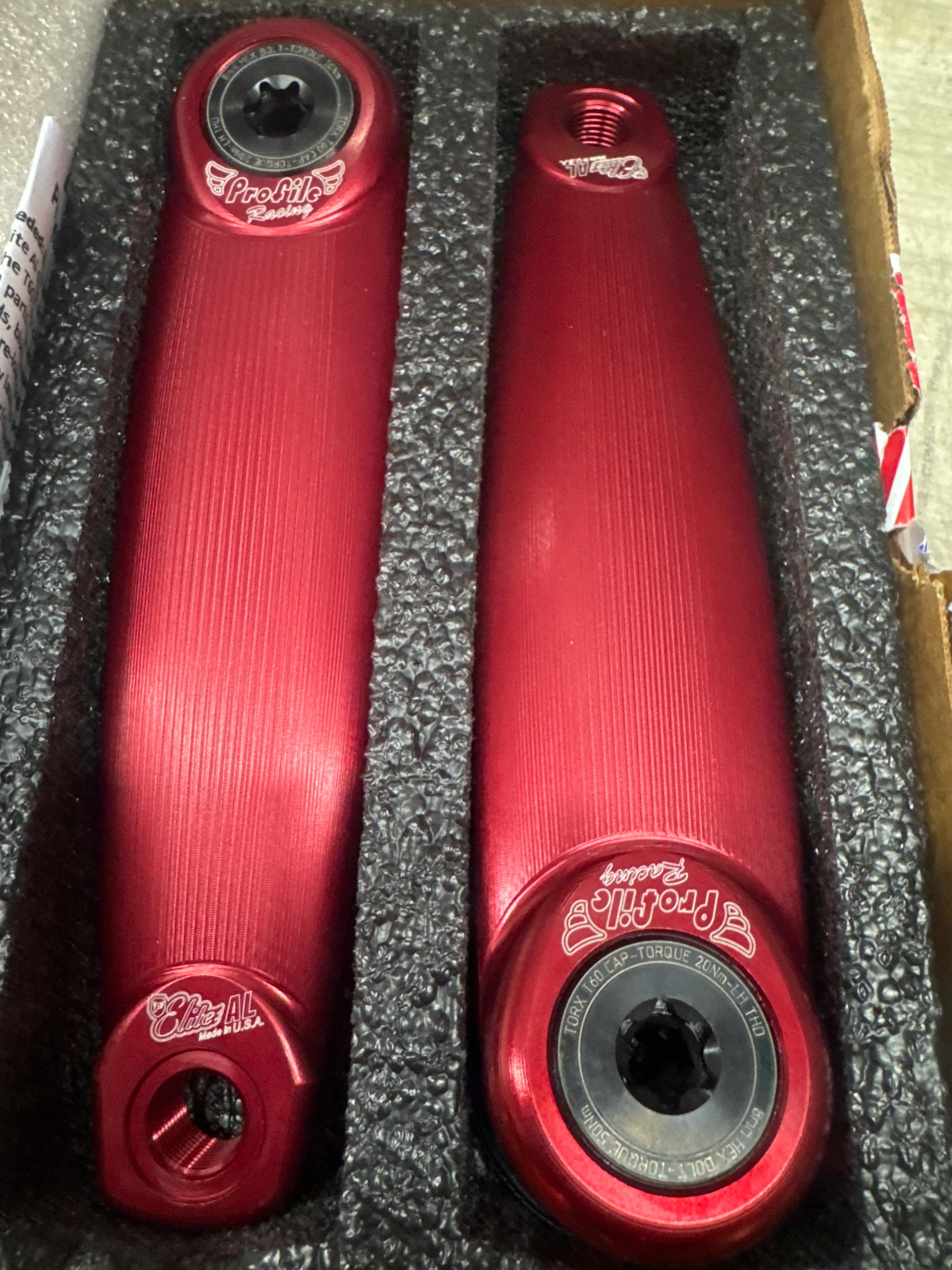

Profile Racing AL elite crank arm set

Description

ELITE AL BMX CRANK arm KIT

Kit includes: LH & RH crank arms, 30mm axle, pedal washers, 8-pcs T20 Torx mounting screws

*** Profile Elite AL Single Chainring Spider and 30mm Bottom Brackets sold separately***

Features:

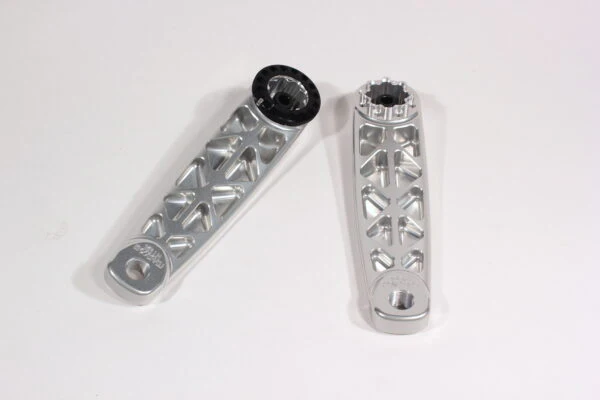

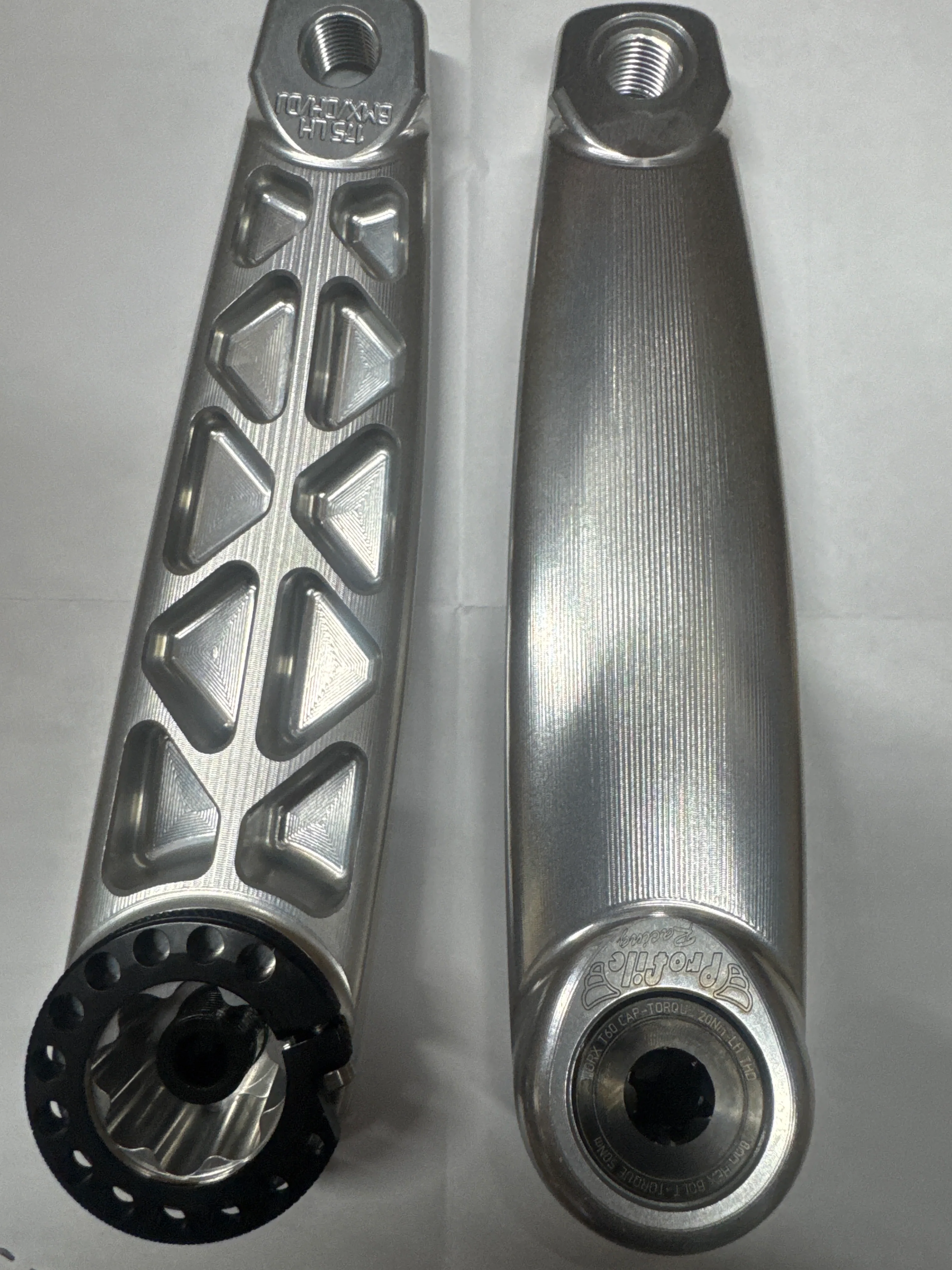

-Precision CNC 3-D surfaced machined from 2024 Billet Aluminum

-Unique heavy duty design for maximum strength

-Adjustable pre-load ring on non-drive crank arm for precise bottom bracket adjustment

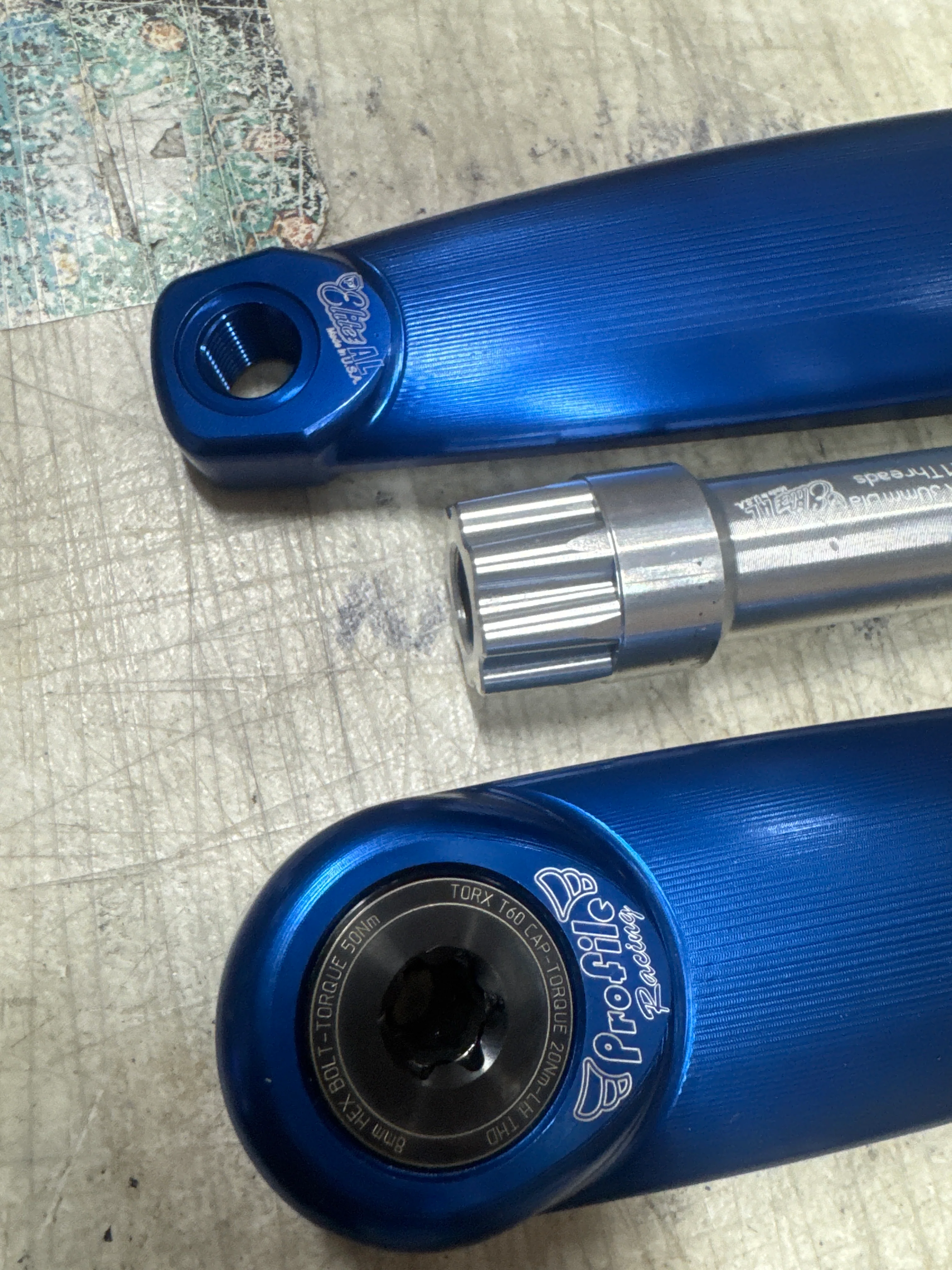

–Supplied with self extractor axle bolts(8mm Hex) and caps(T60 Torx)

-For use with 30mm axle bottom brackets

-Anodized color finish

-Two year warranty

Specifications:

Q FACTORS:
-173mm on 68mm BSA/BB86 bottom bracket
-178mm on 73mm BSA/BB92 bottom bracket

CHAINLINE:
-45mm (on 68mm BSA/BB86 bottom bracket with 3mm offset spider/chainwheel)
-47.5mm (on 73mm BSA/BB92 bottom bracket with 3mm offset spider/chainwheel)

LENGTHS: 165mm, 170mm, 172.5mm, 175mm, 177.5mm, 180mm

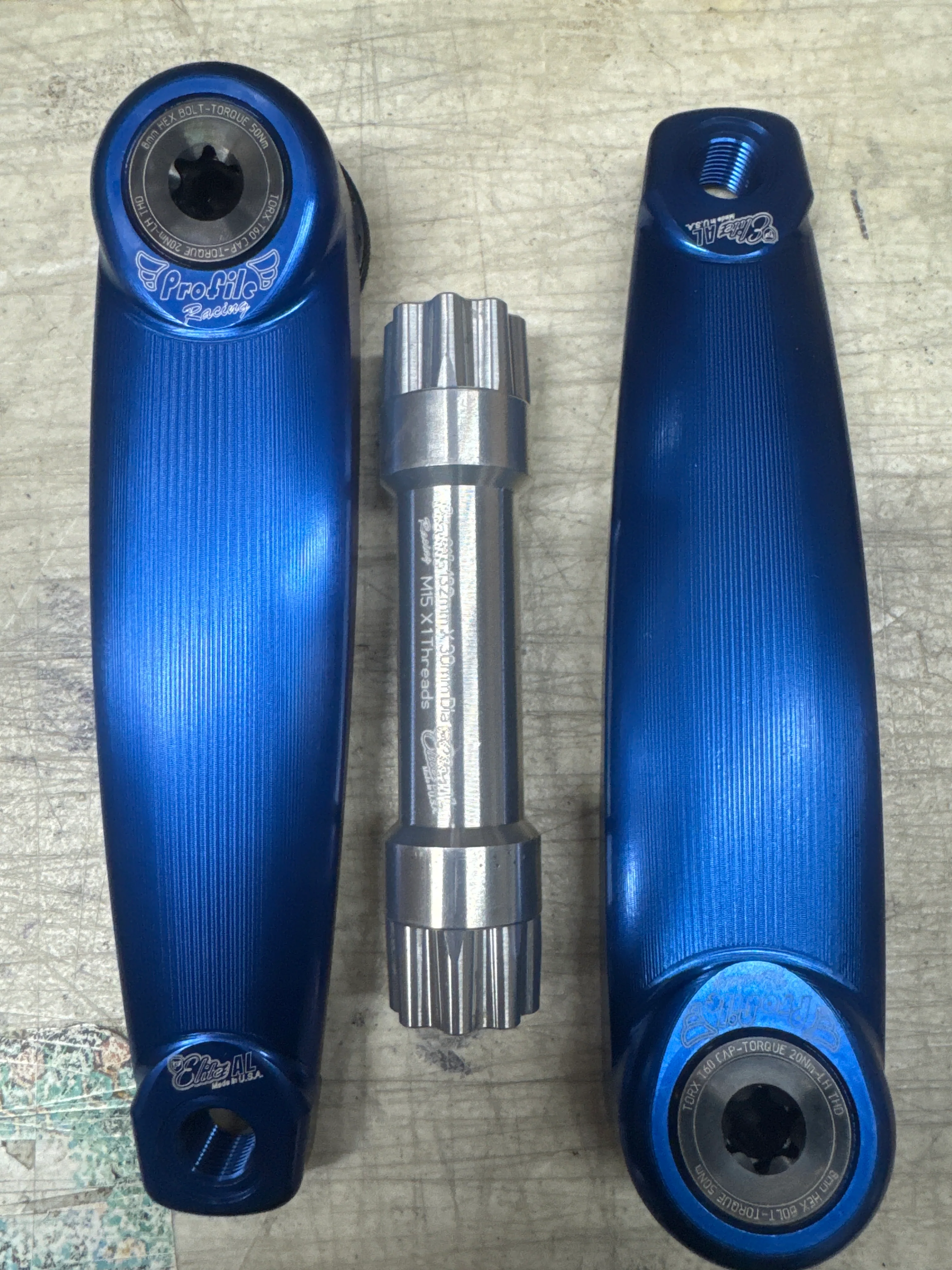

AXLE:
-7075 AL
-30mm dia. with Profile 8-Spline Taper
-M15 x 1 axle bolt threads
-Lengths:
   -132mm(for use with 68mm BSA & BB86 bottom bracket)
   -137mm(for use with 73mm BSA & BB92 bottom bracket)

AXLE MOUNTING INTERFACE: Profile 8-Spline Taper

SPIDER/CHAINWHEEL MOUNT: SRAM 8 Bolt (T20 Torx)

CRANK ARM MATERIAL: 2024 Billet Aluminum

WEIGHT: 725g (170mm) LH & RH crank arms with axle bolts and caps

HARDWARE: M15 x 1 steel self extractor bolts(8mm Hex) & 6Al-4v Titanium T60 Torx caps(black anodized), Stainless Steel pedal washers, 8-pcs T20 Torx mounting screws

Note: Although Elite AL BMX crank arms and axle are proprietary and can only be used in conjunction with one another, bottom bracket and spider/chainwheel are not. This means many other component manufacturer’s 30mm axle bottom brackets and SRAM 8 Bolt spiders/chainwheels are compatible with this crankset. There are plenty out there to choose from!
